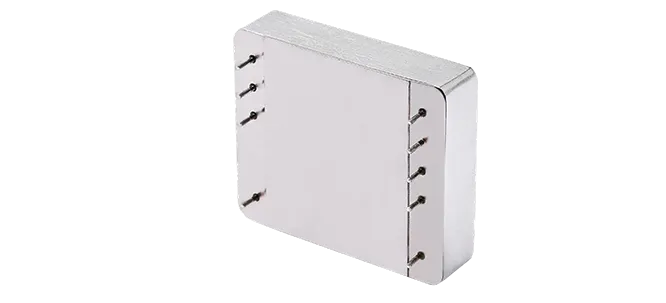

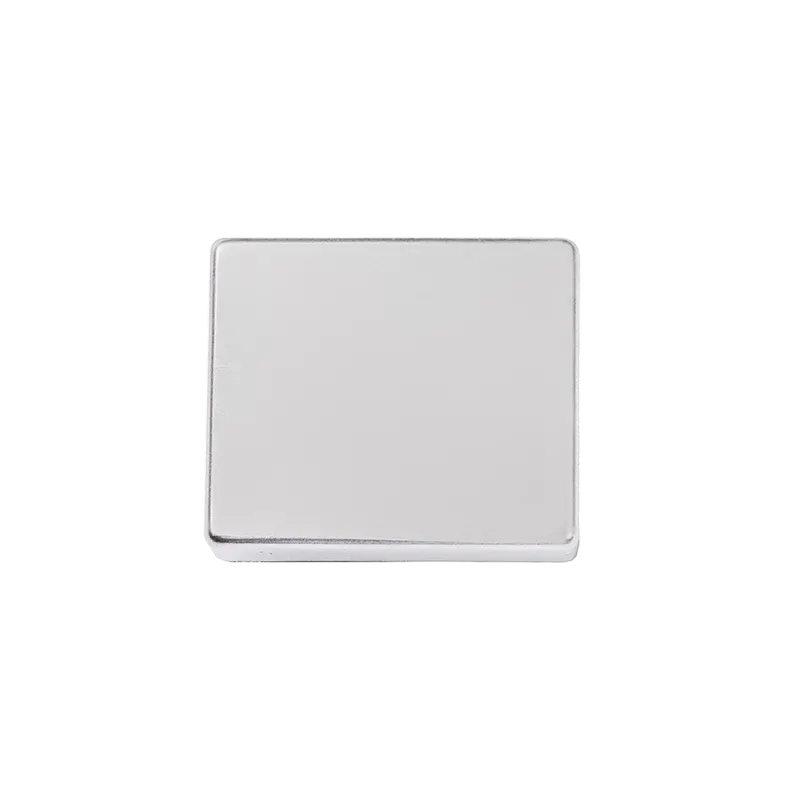

QT45

Product Overview

Features:

Lightweight and compact

Low power consumption

Small size

Wide operating temperature

SA.45 compatible

Key Specifications:

Frequency Accuracy: Better than 5E-11

Frequency Drift Rate: Better than 3E-11/day

Supply Voltage: +3.3 V

Power-on Characteristics: Lock within 4 minutes

External Second Synchronization: 1PPS synchronization accuracy ≤ 50ns

Holdover Performance: Better than 5us (24-hour acclimation, 24-hour holdover)

Dimensions: 41 x 35 x 12 mm³

Weight: Less than 40g

Steady-state Power Consumption: ≤ 130mW (room temperature)

Startup Power Consumption: ≤ 200mW

Operating Temperature: -10°C to +70°C


Main Applications:

Portable measuring instruments, submarine detectors, marine exploration equipment

Main Applications:

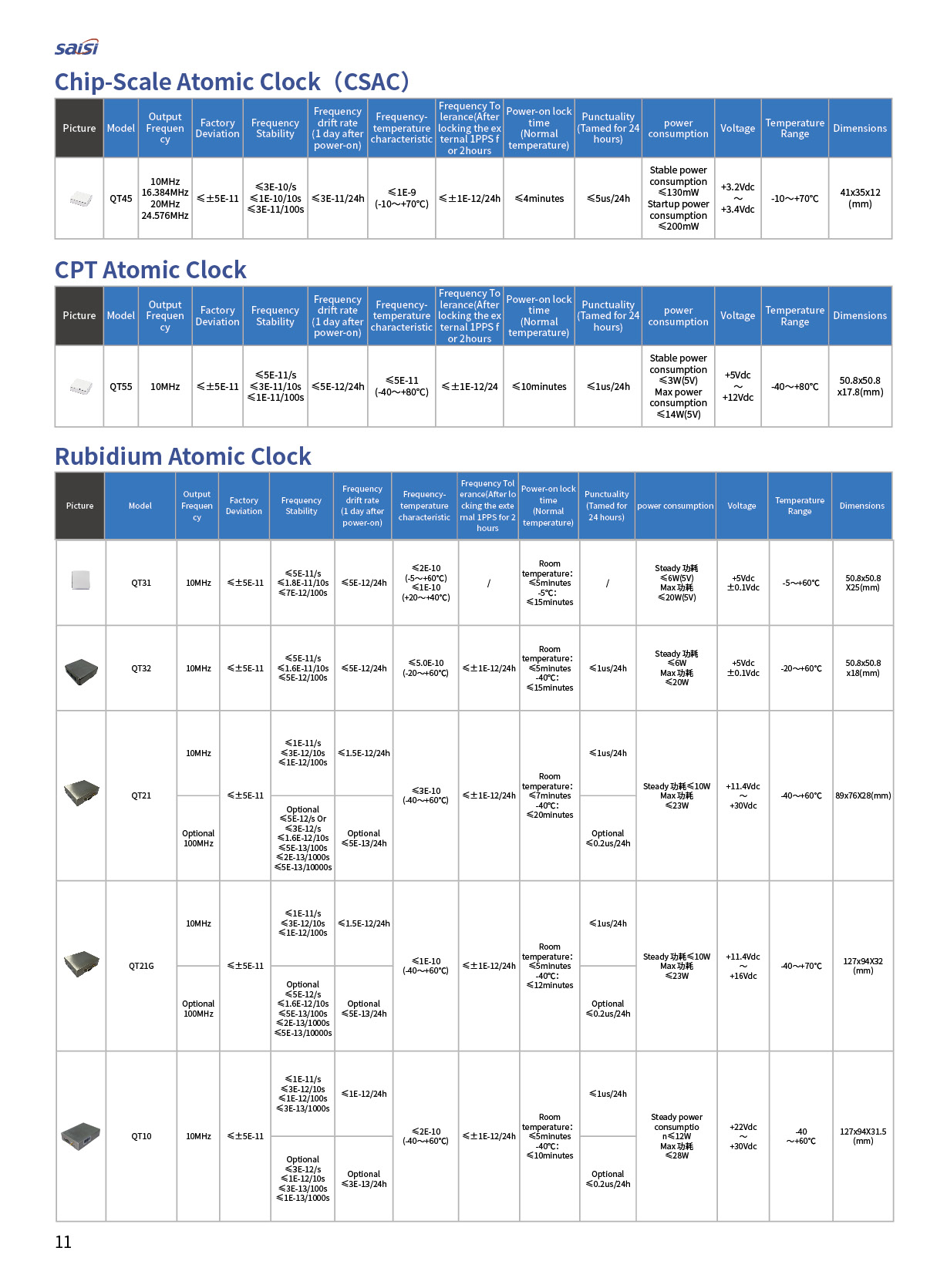

Technical Indicators


Performance IndicatorQT40G CPT Atomic ClockQT45 Chip-Scale ClockQT55 CPT ClockQT31 Clock
1Output Frequency10 MHz10 MHz
16.384 MHz
20 MHz
24.576 MHz
10 MHz10 MHz
2Factory Frequency Offset≤±5E-11≤±5E-11≤±5E-11≤±5E-11

Frequency Stability≤1E-10/s
≤3E-11/10s
≤1E-11/100s
≤3E-10/s
≤1E-10/10s
≤3E-11/100s
≤5E-11/s
≤3E-11/10s
≤1E-11/100s
≤5E-11/s
≤1.8E-11/10s
≤7E-12/100s
4Frequency Drift Rate≤1E-11/24h≤3E-11/24h≤5E-12/24h≤5E-12/24h

After 1 Day of Operation≤8E-10≤1E-9≤1E-9≤4E-11
5Frequency Temperature Coefficient(-5~60°C)(-55~+80°C)(-10~+70°C)(-40~80°C)


≤2E-10 (+20~+40°C)


6Frequency Accuracy (Locked to External 1PPS after 2h)≤±1E-12/24h≤±1E-12/24h≤±1E-12/24h
7Lock Time at Startup≤5 min≤4 min≤10 min≤7 min (at room temp)
≤15 min (-5°C)
8Holdover Performance (after 24h disciplining)≤3μs/24h≤5μs/24h≤1μs/24h
9Power ConsumptionSteady: ≤2W (3.3V)
Peak: ≤5W (3.3V)
Steady: <130 mW (3.3V)Steady: <3W (12V)
Peak: ≤14W (12V)
Steady: ≤6W (5V)
Peak: ≤20W (5V)
10Operating Temperature-55~+80°C-10~+70°C-40~+80°C-5~+60°C
11Dimensions (mm)41 × 35 × 1241 × 35 × 1250.8 × 50.8 × 17.850.8 × 50.8 × 25

Related News

Usage Characteristics of NTP Time Servers

Oct. 28, 2025

Usage Characteristics of NTP Time Servers

In the information age, precise time synchronization is crucial for numerous fields. As a widely adopted time synchronization protocol, the Network Time Protocol (NTP) provides accurate time services for global network devices through NTP time servers. This article elaborates on the core usage characteristics of NTP time servers, including reliabil

Learn More +
The Important Role of Crystal Oscillators

Oct. 28, 2025

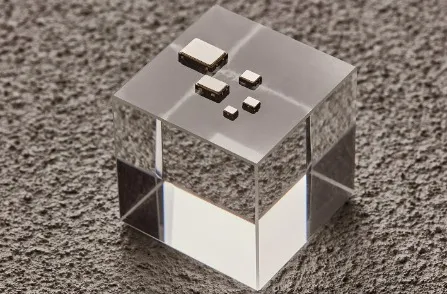

The Important Role of Crystal Oscillators

In today's digital era, various electronic devices such as mobile phones, computers, and communication base stations have been deeply integrated into all aspects of our lives. As one of the core components of these devices, crystal oscillators play a crucial role.

Learn More +
Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

Oct. 28, 2025

Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

CNOOC recently successfully overcame the world-class challenge of developing offshore reef limestone oil fields. This breakthrough was achieved thanks to SYNC's chip-based atomic clocks, which provide high-precision time and frequency support for its submarine exploration equipment.

Learn More +
The Importance of Time Synchronization Servers in the Financial Sector

Oct. 28, 2025

The Importance of Time Synchronization Servers in the Financial Sector

With the continuous advancement of technology, the financial industry is undergoing a continuous digital transformation. In this process, the application of time synchronization technology has become particularly important. As an efficient and reliable time synchronization device

Learn More +
Functional Analysis of Time Synchronization Server for Schools

Oct. 28, 2025

Functional Analysis of Time Synchronization Server for Schools

In the modern technological environment, time synchronization is an essential service. Especially in school settings, accurate time management is crucial for the smooth conduct of teaching activities. This is where the time synchronization server for schools plays its role. So, what functions does a school time synchronization server have? This art

Learn More +
NTP Server: The Core of Time Synchronization in the Digital Era

Oct. 28, 2025

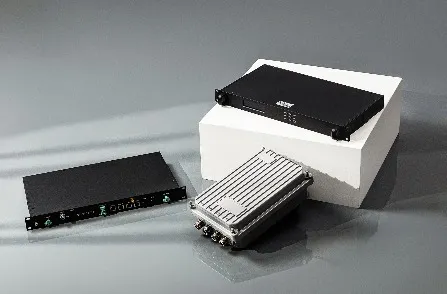

NTP Server: The Core of Time Synchronization in the Digital Era
