Product Overview

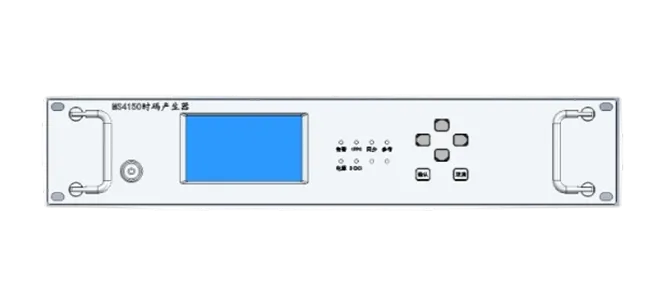

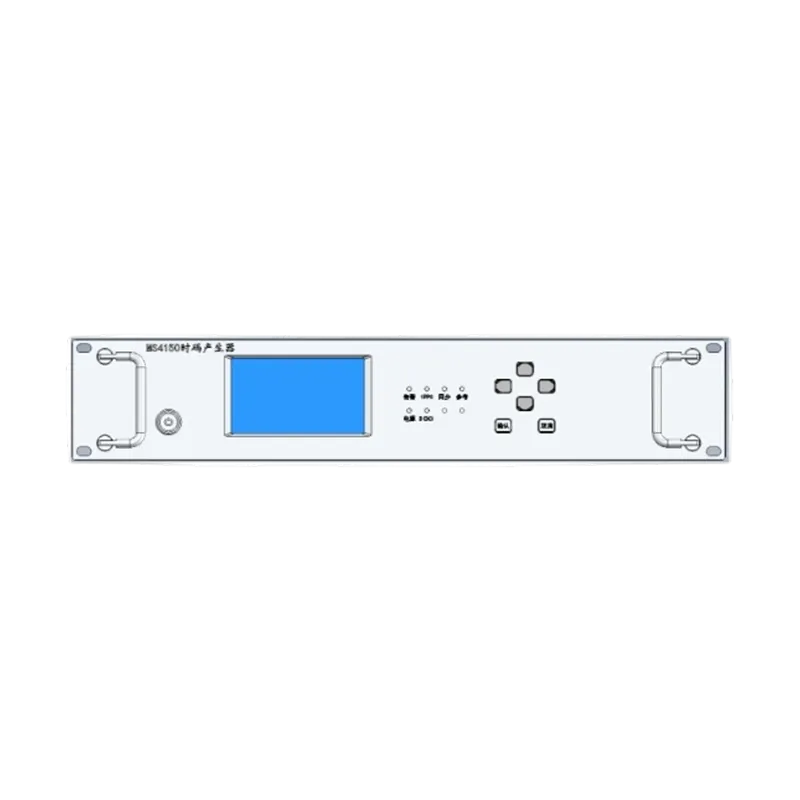

The MS4150 time code generator is a high-performance pulse signal switching product. It consists of a host device and monitoring software. Its basic function is to receive an external 10MHz reference frequency to generate accurate and stable 1PPS, B-code, NTP, and PTP time signals. It can also obtain national standard time by receiving external 1PPS and TOD references. When an external reference is unavailable, the integrated atomic clock/high-stability crystal oscillator maintains national standard time for a specified period of time. System time information can be distributed to all lower-level subsystems via SNMP network management protocol messages, and it can generate locally referenced 1PPS, B-code, NTP, and PTP signals. Supporting software provides device monitoring and configuration management. The MS4170 pulse time code switcher comes in a 2U rack-mountable chassis with a built-in display, LED panel, keypad, time and frequency mainboard, and power supply module.
Basic Functions:
Receives two external 1PPS and two 10MHz signal inputs;
Receives one 1PPS/TOD/B-code input signal.
Outputs four 1PPS and four B-code signals.
Outputs one 1PPS/TOD/B-code signal.
Provides network and serial port monitoring capabilities.
User-friendly host software enables monitoring and configuration.
Technical Indicators
| Project | Indicator Item | Indicator Content |
| ★Output 1PPS Phase Resolution | ≤200ps | |
| Input Interface | 1PPS | 2 Channels |
| 10MHz | 2-channel | |
| 1PPS/TOD/B(DC) | 1-channel | |
| Output Interface | 1PPS | 4-channel |
| B(DC) | 4-channel | |
| Management Interface | Network Port | RJ-45 1-way |
| Serial Port | RS232 1-way | |
| Power Supply | AC Power Supply | AC220V±22V, 50Hz±1Hz |
| Power Consumption | ≤30W | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +75℃ | |
| Physical Characteristics | Dimensions | 430mm*450mm*88mm (Standard Cabinet 2U) |
