Product Overview

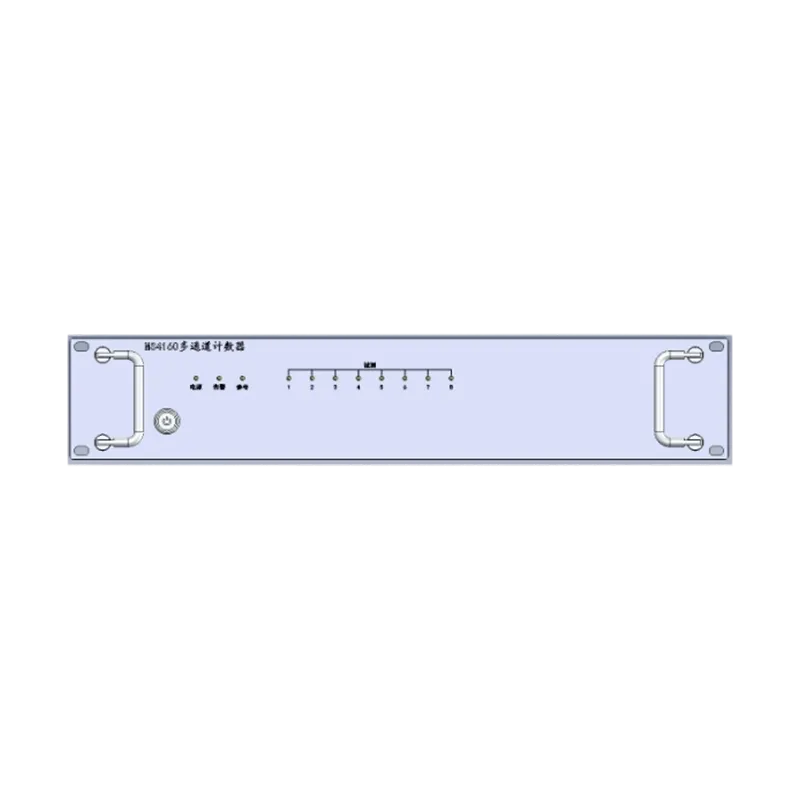

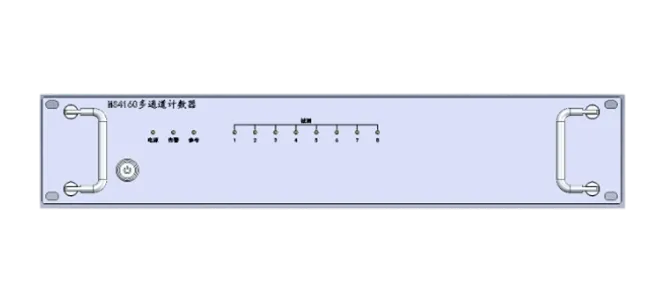

The MS4160 multi-channel counter is an instrument based on the principle of high-precision time difference measurement, utilizing digital technology to perform pulse measurement. The device consists of a main unit and monitoring and data processing software. Its basic function is to analyze the relative time deviation of the measured signal. It can accept an external signal source as a reference to perform phase comparison and measurement between multiple pulse signals. The accompanying software provides device monitoring, configuration management, file generation, and storage. The MS4160 multi-channel counter comes in a 2U rack-mountable chassis and houses a built-in light board, time difference measurement module, and power supply.
Basic Functions:
Accepts 8 external measurement signal inputs;
Accepts one external 10MHz reference input for frequency source calibration;
Provides network and serial port monitoring capabilities;
Features user-friendly host software for real-time acquisition, processing, and storage of measurement results.
Technical Indicators
| Project | Indicator Item | Indicator Content |
| Number of Measurement Channels | 8 Channels | |
| ★Measurement Resolution | ≤30ps | |
| ★Measurement Uncertainty | ≤100ps | |
| External Reference Interface | 10MHz | 1-channel |
| Management Interface | Network Port | RJ-45 1-channel |
| Serial Port | RS232 1-channel | |
| Power Supply | AC Power Supply | AC220V±22V, 50Hz±1Hz |
| Power Consumption | ≤30W | |
| Environmental Adaptability | Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40°C ~ +75°C | |
| Physical Characteristics | Dimensions | 430mm*450mm*88mm (Standard Cabinet 2U) |
Related News
Oct. 28, 2025
The application advantages of NTP time servers in the financial field
In the field of financial transactions, highly accurate NTP time servers are particularly important. If different trading systems are not synchronized in time, it may lead to trading errors and huge losses. In high-frequency trading, the accuracy of time synchronization is even more necessary. Because high-frequency trading is conducted in units of
Learn More +
Oct. 28, 2025
The sci-fi imagination of time in film and television has never stopped, and people's attention to time synchronization has been extended from the big screen to real life. In the digital era, time and frequency serve as the 'pulse' of our world, with time-frequency systems being extensively utilized in critical sectors such as telecommunications, p
Learn More +
Oct. 28, 2025
Composition and Functions of a Clock System
In modern society, clock systems are ubiquitous, and their accuracy and reliability are crucial for both daily life and industrial activities. A standard clock system consists of multiple sophisticated components, each playing an indispensable role. This article will delve into the various components of a clock system and their functions, revealing
Learn More +
Oct. 28, 2025
Core Select Products | Crystal Oscillators: The Hidden "Intelligent" Power of Industrial Control
At the world's first humanoid robot games, every precise turn and every flawless coordination showcased the latest breakthroughs in industrial intelligence. Behind these astonishing technological feats lies a beating heart: an industrial-grade crystal oscillator.
Learn More +
Oct. 28, 2025
Analysis of the Core Characteristics of OCXO
In modern electronic devices, Oven-Controlled Crystal Oscillators (OCXOs) play a crucial role. Whether in communication base stations, satellite navigation systems, or high-precision measuring instruments, OCXOs stand out as indispensable core components due to their exceptional frequency stability
Learn More +
Oct. 28, 2025

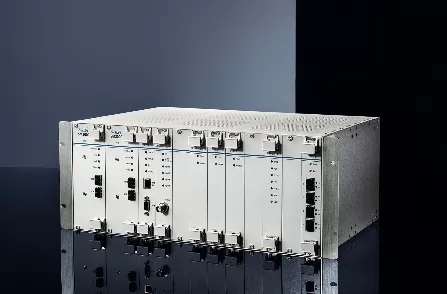

Saisi NTP Server: Precision Time Synchronization for Global Industrial and Enterprise Networks
