Product Overview
The MS4170 time code switcher is a high-performance pulse signal switching product. It consists of a main unit and monitoring software. Its basic functions include isolating two 1PPS and two B-code inputs and amplifying and outputting eight 1PPS and eight B-code signals, offering high channel consistency and low switching latency. The accompanying software provides device monitoring and configuration management.

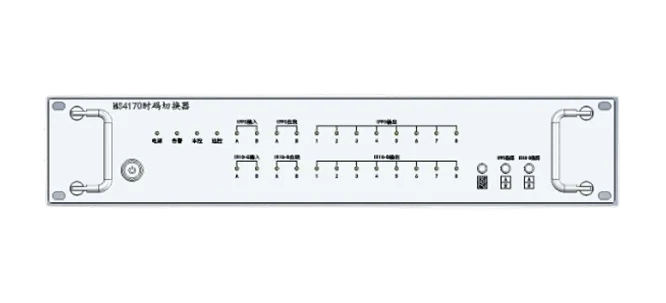

The MS4170 pulse time code switcher comes in a 2U rack-mountable chassis and features a built-in key display module, a time and frequency processing module, and a power supply module.
Basic Functions:
Receives two external 1PPS and two B-code signal inputs with ultra-low switching time.
Outputs eight 1PPS and eight B-code signals with high channel consistency.
Provides network and serial port monitoring capabilities.
Features user-friendly host software for monitoring and configuration.
Technical Indicators
| Project | Indicator Item | Indicator Content |
| Switching Time | ≤10us | |
| Input Interface | 1PPS | 2 Channels |
| IRIG-B (DC) | 2-way | |
| Output Port | 1PPS | 8-way |
| IRIG-B (DC) | 8-way | |
| Management Port | Network Port | RJ-45 1-way |
| Serial Port | RS232 1-way | |
| Power Supply | AC Power Supply | AC220V±22V, 50Hz±1Hz |
| Power Consumption | ≤20W | |
| Environmental Adaptability | Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +75°C | |
| Physical Characteristics | Dimensions | 430mm*450mm*88mm (Standard Cabinet 2U) |
