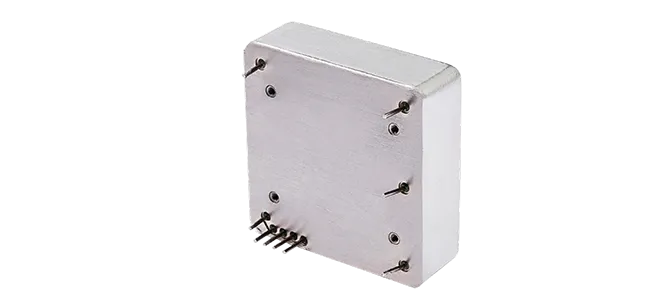

QT55

Product Overview

Features:

Lightweight and compact

Wide input voltage

Wide operating temperature range

Ultra-low temperature coefficient

High vibration resistance

SA.55 compatible

Key Specifications:

Frequency Accuracy: Better than 5E-11

Frequency Drift Rate: Better than 2E-11/day

Supply Voltage: +5V to +12V

Power-on Characteristics: Locks within 10 minutes

External Second Synchronization: 1PPS synchronization accuracy better than +/- 50ns

Holdover Performance: Better than 1µs (24-hour acclimation, 24-hour holdover)

Dimensions: 50.8 x 50.8 x 17.8 mm³

Steady-state Power Consumption: Less than 3W

Maximum Power Consumption: Less than 14W

Main Applications:

Satellite navigation, underwater navigation, digital communications, network synchronization, rail transit

Main Applications:

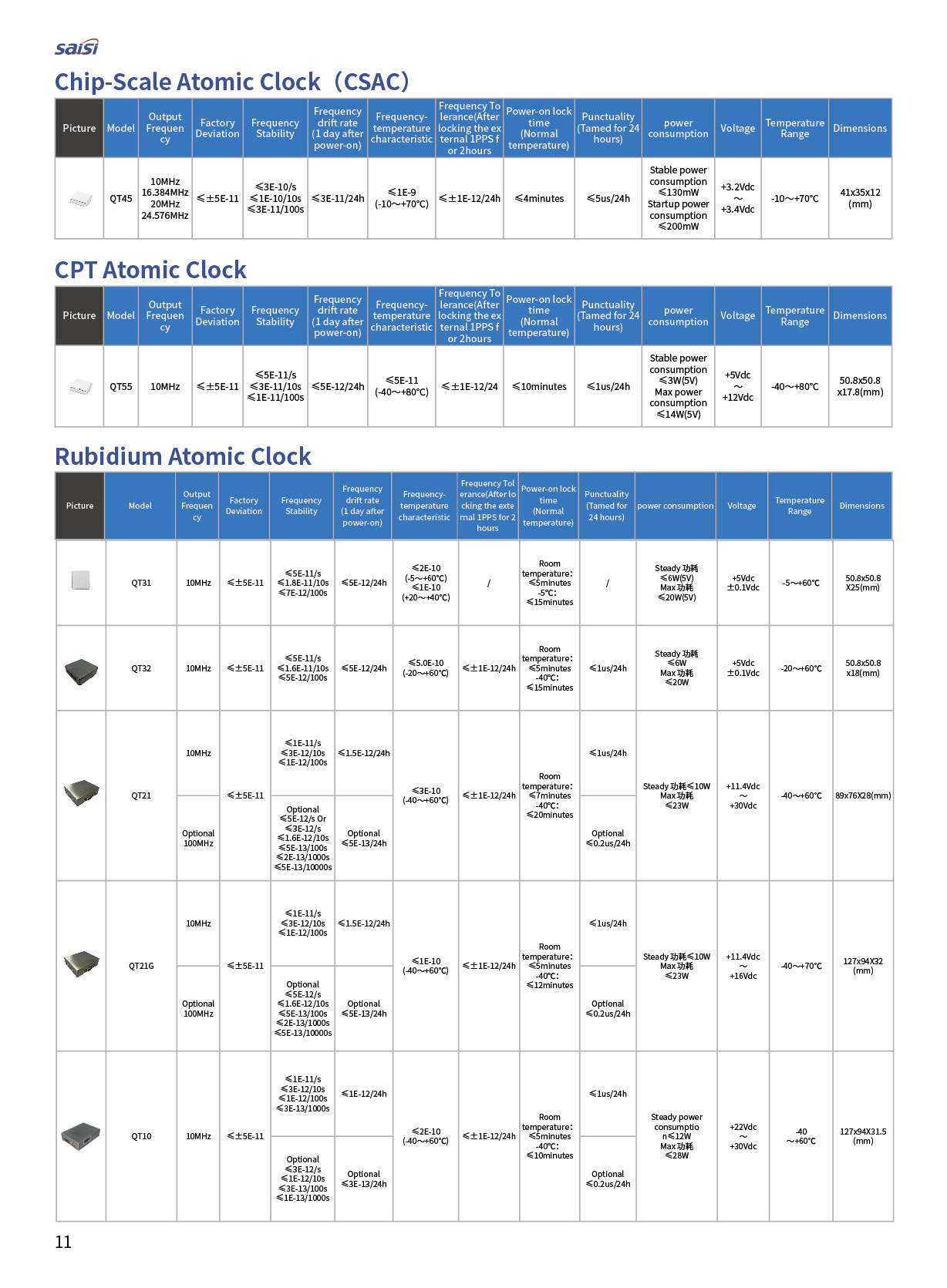

Technical Indicators
