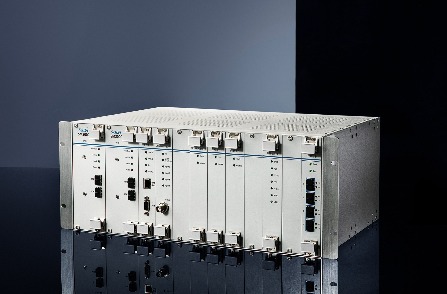

Components of an NTP Time Server

NTP (Network Time Protocol) time servers play a critical role in modern networks. By providing precise time synchronization services, they ensure time consistency across different systems and devices. This article details the key components of an NTP time server, helping readers gain a better understanding of its working principles and functions.

I. Basic Components of an NTP Time Server

Receiving Module

The receiving module is a vital component of an NTP time server, responsible for acquiring time data from diverse time sources such as GPS and Beidou satellite signals. These time sources deliver high-precision time references, ensuring the NTP server can obtain accurate time data.

Processing and Calibration Module

Upon receiving external time signals, the processing and calibration module executes a series of operations. It converts these signals into data formats recognizable by computers. To enhance time accuracy, the module also performs error correction, filtering, and smoothing on the data. Common techniques include statistical algorithms such as the Kalman filter and the least squares method.

Clock Module

The clock module is one of the core components of an NTP time server, typically consisting of a high-quality atomic clock or a high-stability quartz crystal oscillator. Atomic clocks offer exceptional time stability and accuracy, while high-stability quartz crystal oscillators can provide stable and reliable time reference signals over short periods.

Network Interface Module

NTP time servers require network connectivity to communicate and synchronize time with other devices. The network interface module supports multiple network protocols (e.g., IPv4, IPv6) and is equipped with multiple network ports to adapt to different network environments. Additionally, this module features load balancing capabilities, which intelligently select the optimal path among multiple network routes to improve the efficiency and reliability of data transmission.

Monitoring and Management Module

The monitoring and management module is essential for ensuring the stable operation of an NTP time server. It enables real-time monitoring of server performance metrics, including clock accuracy and network latency, and triggers timely alarms in the event of anomalies. Furthermore, administrators can remotely log in to perform configuration modifications and system upgrades.

II. Additional Features

Beyond the basic components, NTP time servers are equipped with additional features to enhance their practicality and reliability. For example:

They support dual-server hot standby and automatic failover, allowing seamless switchover to a backup server if the primary unit malfunctions.

They offer log recording and analysis functions, facilitating administrator audits and troubleshooting.

They support multiple time calibration protocols and customizable settings to meet the requirements of different application scenarios.

In summary, the components of an NTP time server include not only basic elements such as the receiving module, processing and calibration module, clock module, network interface module, and monitoring and management module, but also a range of additional features to ensure high performance, reliability, and flexibility. The collaborative operation of these components enables NTP time servers to deliver accurate and reliable time synchronization services in various complex network environments.
