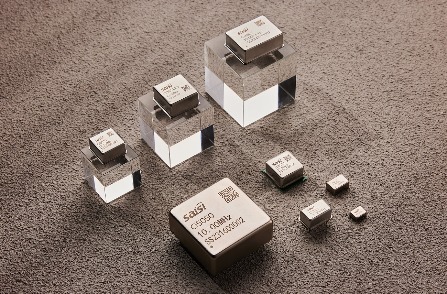

How to Select Different Crystal Oscillator Packages?

In the design of electronic devices, crystal oscillators serve as core components of clock sources, and their performance directly impacts the stability and reliability of the system. However, faced with a wide array of crystal oscillator package types on the market, many engineers often feel confused when making a selection. Different package forms not only affect the physical characteristics of crystal oscillators but are also closely related to circuit layout, heat dissipation performance, and cost. So, how to select the most suitable crystal oscillator package according to actual needs? This article will provide a detailed analysis for you, helping you make informed decisions in your design.

When selecting a crystal oscillator package, the following key factors need to be comprehensively considered:

Application ScenariosDifferent application scenarios have different requirements for crystal oscillator packages. For example, consumer electronic products typically require miniaturized surface-mount packages, while industrial equipment may need more durable metal packages.

Frequency RangeThe frequency range of a crystal oscillator is closely related to its package form. Generally speaking, high-frequency crystal oscillators are more suitable for ceramic packages, while low-frequency crystal oscillators can use through-hole or surface-mount packages.

Circuit Board SpaceModern electronic devices are becoming increasingly miniaturized, with limited circuit board space. In such cases, choosing a smaller surface-mount package is a better option.

Heat Dissipation RequirementsHigh-power consumption devices have high requirements for heat dissipation performance. Crystal oscillators with metal packages usually have better heat dissipation effects and are suitable for high-power applications.

Cost ControlCrystal oscillators of different package forms vary greatly in cost. On the premise of meeting performance requirements, selecting a package form with lower cost can effectively reduce the overall design cost.

From the above analysis, it can be seen that the selection of crystal oscillator packages needs to comprehensively consider multiple factors such as application scenarios, frequency range, circuit board space, heat dissipation requirements, and cost control. Only by selecting the appropriate package form according to actual needs can the performance and reliability of electronic devices be ensured. It is hoped that this article can provide valuable references for you in the selection of crystal oscillator packages.
