NTP/RS422

Product Overview

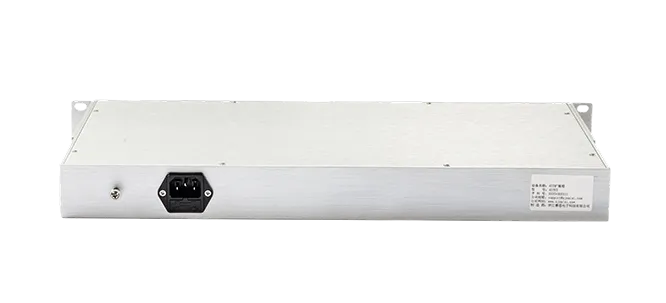

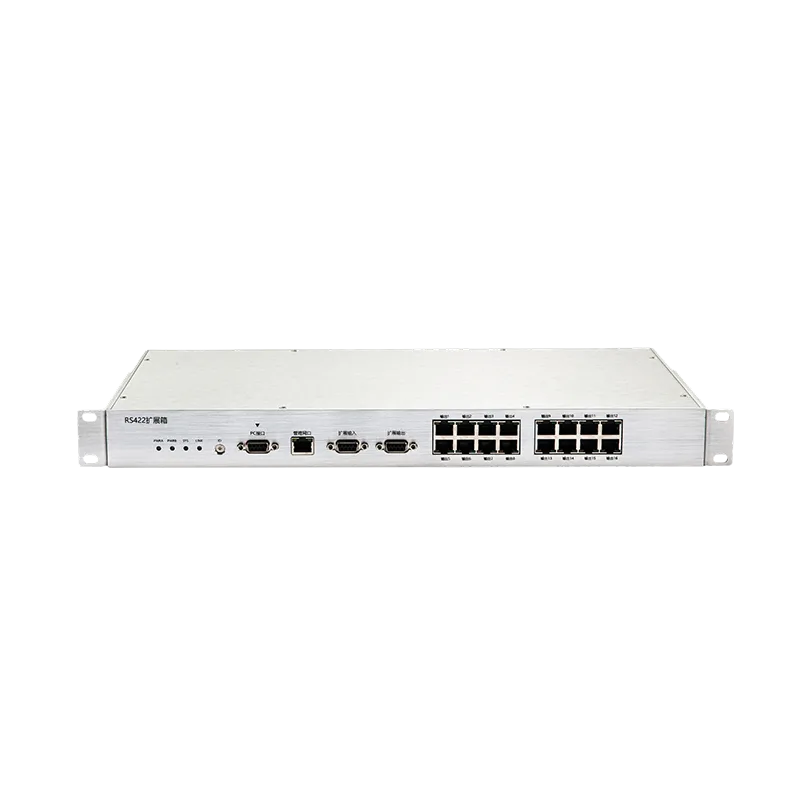

The RS422 expansion box is a multi-channel signal generator. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple RS422 output signals locally.


The NTP expansion box is a multi-channel NTP service expansion device. Utilizing proprietary bus technology, it accurately receives time and frequency signals from the TS8000 master clock and generates multiple NTP output signals locally.

Features:

Standalone 1U, standard 19-inch design

Standard RJ45 output port

Centralized management via the TS8000 master clock

Patented bus expansion technology supports up to 15 cascaded expansion units

Main Applications:

Technical Indicators

ProjectTechnical Specifications
Input SignalRS422 Expansion BoxNTP Expansion Box
Master Clock Bus
Output SignalRS485/422NTP
Number of Interfaces (Per Unit)1610
Management PortRS232 Serial Port
Power Supply220V (AC) Single-Channel Configuration
Power Consumption≤15W
Environmental AdaptabilityOperating Temperature-10℃~60℃
Humidity0-95%, non-condensing
Dimensions (H x W x D)44mm x 443mm x 290mm
