SM2000

Time and Frequency Synchronization Device/Network Synchronization Device/Bits Device

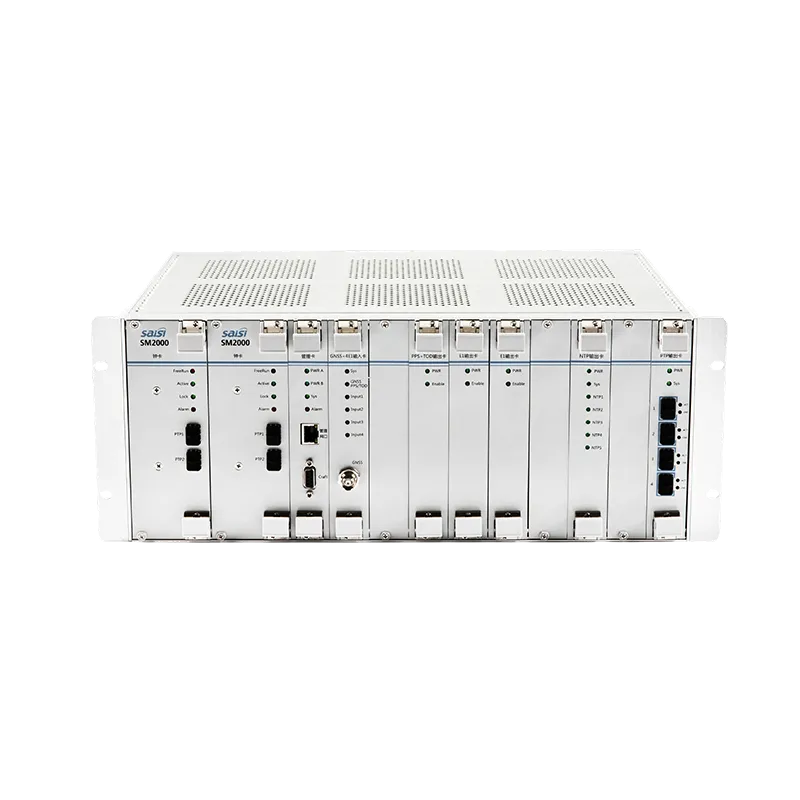

SM2000

Product Overview

The SM2000 is a carrier-grade, high-precision network synchronization device/time and frequency fusion platform that supports IEEE 1588. It utilizes digital phase-locked loop (DLLL) technology and an independent timing algorithm based on an FPGA (field programmable gate array) to provide high-precision and reliable time and frequency reference signals. The device provides a reference clock source compliant with ITU-T G.811 and G.812 standards; a traditional 2Mbit/2MHz frequency synchronization signal; and time outputs such as PPS+TOD, NTP, and PTP.

Features:

Supports IEEE 1588v2 and provides Layer 2/Layer 3 PTP output

Supports hot-swappable cards and expansion chassis

Passes Level 1, 2, and 3 network access tests by the Ministry of Industry and Information Technology

Passes Level 7, 8, and 9 earthquake resistance tests by China Telecommunication Technology Laboratory

Passes low-pressure testing, suitable for use in plateau areas

Supports CLI, SNMP, and TLI configuration and management

Main Applications:

Mobile operators' communication synchronization networks, power system communication synchronization networks, rail transit, and other synchronization scenarios.

Main Applications:

Technical Indicators

ProjectTechnical Specifications
Timing PerformanceFrequency Accuracy (Satellite Tracking)±3.0E-13
Frequency Accuracy (Free-Running)±5.0E-11
Pull-in Range±2.0E-8
Holdover Range±2.3E-8
Jitter<0.01UI
Drift≤40ns/2day
Holdover≤-4.3E-12 (3.5days)
PTP PerformanceOutput Accuracy<100ns
Client Response Capacity500client/s
Input SignalGPS/Beidou Satellite Signal, E1, PTP, PPS+TOD
Output SignalE1, PTP/NTP, PPS+TOD, 10MHz, IRIG-B
Extended OutputSupported
Management PortRS232, RJ45
Network Management ProtocolSupports TL1, SNMP
Power Supply-48V (DC), redundant dual power supplies
Power Consumption<120W
Operating EnvironmentTemperature-10℃~60℃
Humidity0~95% (non-condensing)
Dimensions (H × W × D)177mm × 432mm × 287mm
Weight≤10kg
