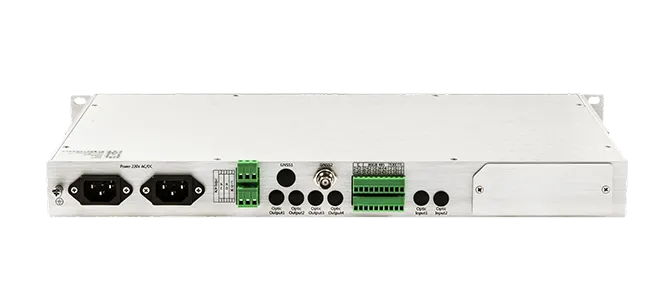

TS3000 (1U)

Product Overview

The TS3000 (1U) is a universal NTP server that supports NTP input and output interfaces. It tracks satellites or upstream input sources to provide standard NTP output to downstream devices. Other output time interface signals (PPS/PPM/PPH/PPD, TOD, IRIG-B, and DCF77) are also available.

Features:

Standard 19-inch 1U chassis design

Redundant power supply and satellite input for enhanced reliability

High-stability crystal oscillator (optional rubidium clock)

24/7 continuous operation

Extensive status display capabilities (LCD display and LED indicators)

Supports network centralized monitoring and management, with visual configuration management

Main Applications:

Power plants, rail transit, finance, hospitals, digital substations, smart cities, and other scenarios requiring network time synchronization.

Main Applications:

Technical Indicators

ProjectTechnical Specifications


Satellite Receiver and Antenna
Receiver SensitivityAcquisition <-160dBm
Tracking <-163dBm
Receiver Acquisition TimeHot Start: 1s
Cold start: 30s
Receiver time accuracyBetter than 20ns (1PPS, relative to UTC)
Receive antenna sensitivity<-163dBm
NTP outputTiming accuracy<1ms (port direct connection)
Number of ports5-port (RJ45, 10/100M auto-sensing)
Timekeeping Performance≤1us/h (within 12 hours)
Power SupplyAC Power Supply90~264V
DC Power Supply127~370V
Power Supply ModeDual Power Supply
Power Consumption≤20W
Environmental SuitabilityOperating Temperature-10°C to 60°C
Humidity0 to 95%, non-condensing
Dimensions (H × W × D)44mm × 443mm × 322mm
Weight≤2kg
