Saisi | Master/Slave Clock System

Product Overview

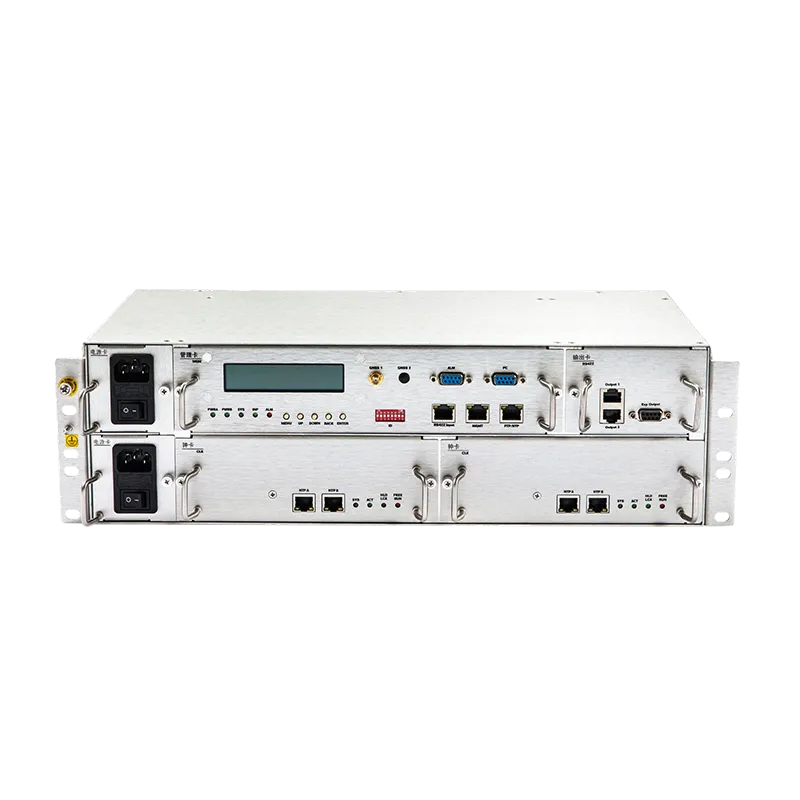

The TS8000 is a high-precision clock product that combines a digital slave clock to form a master/slave clock system. It supports the IEEE 1588v2 protocol and pioneers the use of PTP for time synchronization between primary and secondary master clocks in rail transit applications, improving the overall accuracy of the clock system.

Features:

Supports dual-channel GPS and Beidou satellite inputs; supports RS422, PPS+TOD, NTP, and PTP (optional) signal inputs.

Unique FPGA timekeeping algorithm for industry-leading timekeeping capabilities.

Local maintenance software or network management platform for visual device configuration and management.

Main Applications:

Subways, trams, stadiums, hospitals, large train stations, airports, etc.

Related News

Oct. 28, 2025

Advantages of Industrial-Grade Applications of Oven-Controlled Crystal Oscillators

In the industrial field, stability and precision are crucial. Oven-Controlled Crystal Oscillators (OCXOs), as precision electronic components, have gained widespread application due to their outstanding performance and stability. Let us delve into the significant advantages of OCXOs in industrial-grade applications.

Learn More +

Oct. 28, 2025

The Application of Atomic Clocks in Airports

In the field of modern air transportation, the accuracy of time is not only a technical issue but also a key link related to safety. Among numerous high-precision timekeeping devices, atomic clocks, with their outstanding stability and precision, have become an indispensable technical support for airports worldwide.

Learn More +

Oct. 28, 2025

The Importance of Time Synchronization Servers in the Financial Sector

With the continuous advancement of technology, the financial industry is undergoing a continuous digital transformation. In this process, the application of time synchronization technology has become particularly important. As an efficient and reliable time synchronization device

Learn More +

Oct. 28, 2025

Clock Server: The Technical Architecture and Industry Value Behind Precise Synchronization

Learn More +

Oct. 28, 2025

Functional Analysis of Time Server

Learn More +

Oct. 28, 2025

Usage Characteristics of NTP Time Servers

In the information age, precise time synchronization is crucial for numerous fields. As a widely adopted time synchronization protocol, the Network Time Protocol (NTP) provides accurate time services for global network devices through NTP time servers. This article elaborates on the core usage characteristics of NTP time servers, including reliabil

Learn More +

Oct. 28, 2025

What Special Advantages Do Atomic Clocks Have Over Crystal Oscillators?

Learn More +

Oct. 28, 2025

Core Select Products | Crystal Oscillators: The Hidden "Intelligent" Power of Industrial Control

At the world's first humanoid robot games, every precise turn and every flawless coordination showcased the latest breakthroughs in industrial intelligence. Behind these astonishing technological feats lies a beating heart: an industrial-grade crystal oscillator.

Learn More +

Oct. 28, 2025

Chip Express | SYNC's Domestic Atomic Clock: How a "Chinese Chip" Precision Drives the Internet of Everything Era?

CNOOC recently successfully overcame the world-class challenge of developing offshore reef limestone oil fields. This breakthrough was achieved thanks to SYNC's chip-based atomic clocks, which provide high-precision time and frequency support for its submarine exploration equipment.

Learn More +

Oct. 28, 2025

Application of Time Server in Data Computer Rooms

Learn More +

Related products

SM2000

Time and Frequency Synchronization Device/Network Synchronization Device/Bits Device

NMS (Network Management System)

The Synchronous Network Integrated Network Management System is a comprehensive network management system for synchronization equipment independently developed by our company.

NS7200 (2U)

10 Gigabit NTP Server

NTP Time Server

TS8000 Expansion Box

Modular NTP Server

Power System Time Synchronizer

Project		Technical Specifications
Synchronization Performance	Stability	≤1×10-10
	Synchronization Timing Accuracy	±0.1us
	Accuracy	≤1×10-9
	Daily Fluctuation During Desynchronization	≤1×10-9
	Cumulative Error	±0.01 seconds/month (autonomous time)
	Master/Slave Clock Card Switchover Time	≤1us
Input Signal		GPS/Beidou Satellite Signal, PPS, TOD, RS422, NTP, PTP (Optional)
Output Signal		RS485/422, NTP, PTP (Optional), IRIG-B (Optional)
NTP request rate		1500 times/second
MTBF		≥200,000 hours
Management port		RS232, RJ45
Power supply		100-240V (AC), 47-60Hz, redundant configuration
Power consumption		≤20W
Operating Environment	Temperature	-10°C~60°C
	Humidity	0~95%, non-condensing
Dimensions		134×483×305mm(3U)
Weight		≤5kg
