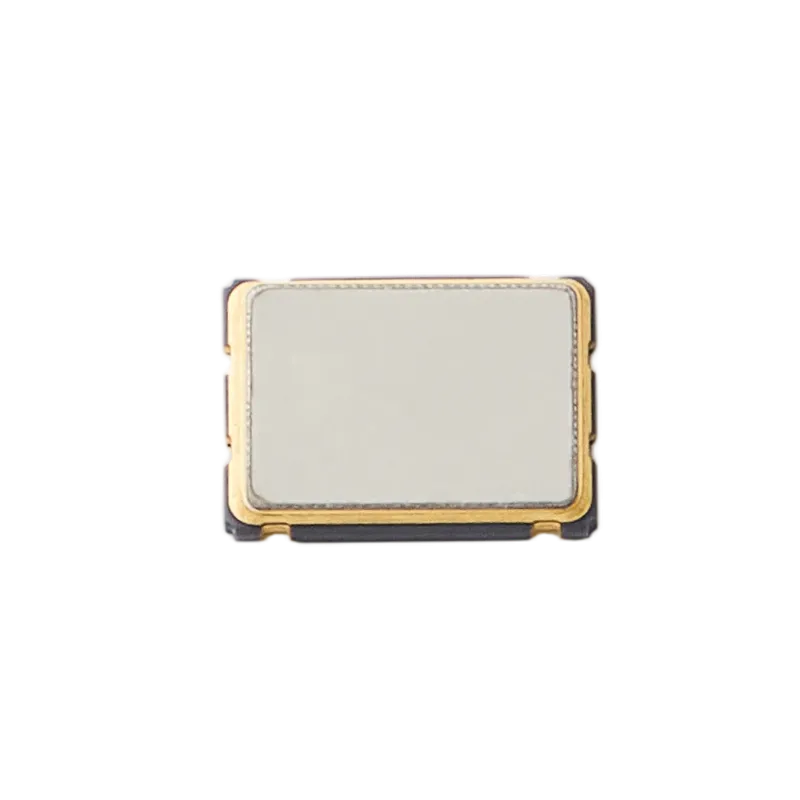

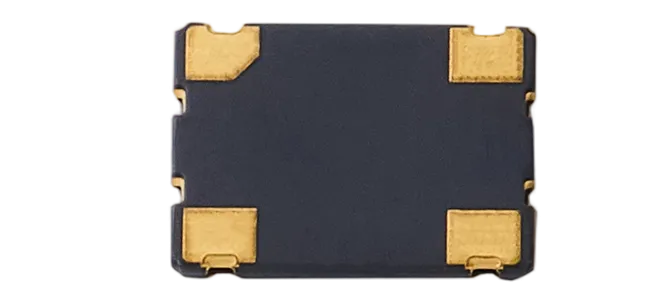

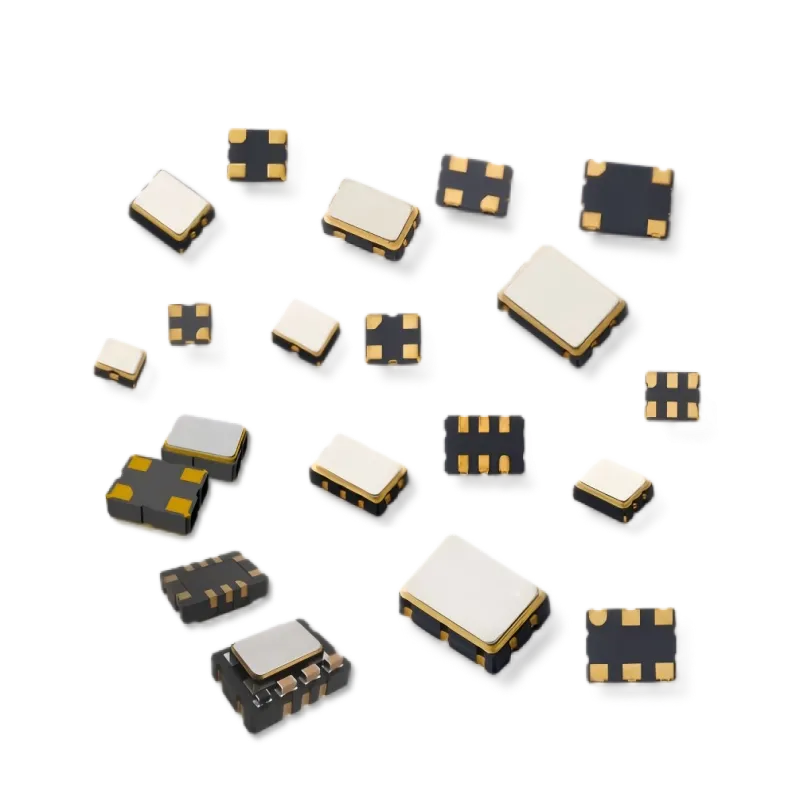

Product Overview
An SPXO is an active device that integrates a crystal resonator and a start-up circuit. It can output a CMOS or differential frequency signal, which can be used as a reference clock source for circuits.
Features:
Ultra-small and thin, wide operating temperature range, low jitter, high stability, and a full range of sizes.
Main Applications:
Automotive electronics: audio, navigation, GPS, clocks, IPCs, radar, etc.
Smart terminals: digital cameras, tablets, PCs, etc.
Smart home appliances: air conditioners, refrigerators, washing machines, rice cookers, water heaters, etc.
Industrial control equipment: robots, instruments, etc.
Communications equipment: small base stations, intercoms, etc.
Data communications products: optical modules, routers, optical communication systems, switches, etc.
Technical Indicators
| Model | Total Drift | Temperature Range | Waveform | Voltage | Package | Frequency Range | ||||||||||
| Ordinary Crystal Oscillator | SPXO2016 | ≤±25ppm ≤±50ppm | -40~+85℃ -55~+125℃ | CMOS | 1V,2.5V,3.3V | 2.0*1.6mm | 32.768KHz 1MHz~200MHz | |||||||||
| SPXO2520 | ≤±25ppm ≤±50ppm | -40~+85℃ | LVDS HCSL | 1V,2.5V,3.3V,5V | 2.5*2.0mm | 32.768KHz 1MHz~250MHz | ||||||||||
| -55~+125℃ | CMOS LVPECL | |||||||||||||||
| SPXO3225 | ≤±25ppm | -40~+85°℃ | LVDS HCSL | 1V,2.5V,3.3V,5V | 3.2*2.5mm | 32.768KHz 1MHz~2100MHz | ||||||||||
| ≤±50ppm | -55~+125℃ | CMOS LVPECL | ||||||||||||||
| SPXO5032 | ≤±25ppm | -40~+85℃ | LVDS HCSL | 1V,2.5V,3.3V,5V | 5.0*3.2mm | 32.768KHz | ||||||||||
| ≤±50ppm | -55~+125°℃ | CMOS LVPECL | 1MHz~2100MHz | |||||||||||||
| SPXO7050 | ≤±25ppm ≤±50ppm | -40~+85℃ -55~+125℃ | LVDS HCSL CMOS LVPECL | 1V, 2.5V, 3.3V, 5V | 7.0*5.0mm | 32.768KHz 1MHz~2100MHz | ||||||||||
| Model | Total Drift | Temperature Range | Waveform | Voltage | Package | Frequency Range | |||||||||||
| Voltage Controlled Crystal Oscillator | VC1409 | ≤±20ppm ≤±50ppm | -40~+85℃ -55~+125℃ | CMOS Sine Wave | 3.3V, 5V | 14*9*5.8mm | 100MHz~128MHz | ||||||||||
| VC3225 | ≤±25ppm ≤±50ppm | -40~+85℃ -55~+125℃ | LVDS HCSL CMOS LVPECL | 2.5V,3.3V | 3.2*2.5mm | 10MHz~1500MHz | |||||||||||
| VC5032 | ≤±25ppm ≤±50ppm | -40~+85℃ -55~+125℃ | LVDS HCSL CMOS LVPECL | 1.8V,2.5V,3.3V | 5.0*3.2mm | 10MHz～2100MHz | |||||||||||
| VC7050 | ≤±25ppm ≤±50ppm | -40~+85℃ -55~+125℃ | LVDS HCSL CMOS LVPECL | 1.8V,2.5V,3.3V | 7.0*5.0mm | 10MHz～2100MHz | |||||||||||
| Model | Total Drift | Jitter (12KHz~20MHz) | Waveform | Voltage | Package | Frequency Range | |||||||||||
| Ultra-Low Phase Noise Oscillator | LSPXO1409 | ≤±20ppm | 8ps@100MHz | CMOS Sine wave | 3.3V,5V | 14*9*5.8mm | 100MHz~128MHz | ||||||||||
| LSPXO3225 | ≤±50ppm | 0.1ps@155MHz | LVPECL | 2.5V,3.3V | 3.2*2.5mm | 20MHz~200MHz | |||||||||||
| LSPXO3225 | ≤±50ppm | 0.1ps@155MHz | LVDS | 1.8V,2.5V,3.3V | 3.2*2.5mm | 20MHz~200MHz | |||||||||||
Related News
Oct. 28, 2025

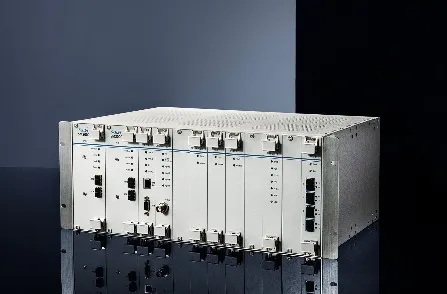

Clock Server: The Technical Architecture and Industry Value Behind Precise Synchronization
Learn More +
Oct. 28, 2025
Oct. 28, 2025
Introduction to the Working Principle and Application Scenarios of TCXO
A Temperature-Compensated Crystal Oscillator (TCXO) is a type of crystal oscillator that enhances frequency stability through temperature compensation technology. Its core feature is the ability to automatically adjust the output frequency according to changes in ambient temperature, thereby ensuring the precision of clock signals. Compared with st
Learn More +
Oct. 28, 2025

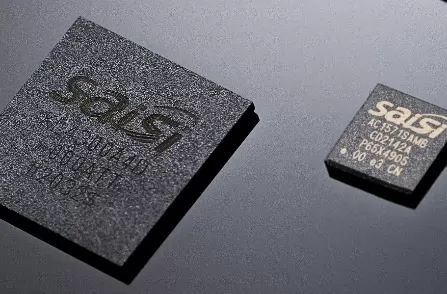

Clock Buffers in Modern Electronic Systems
