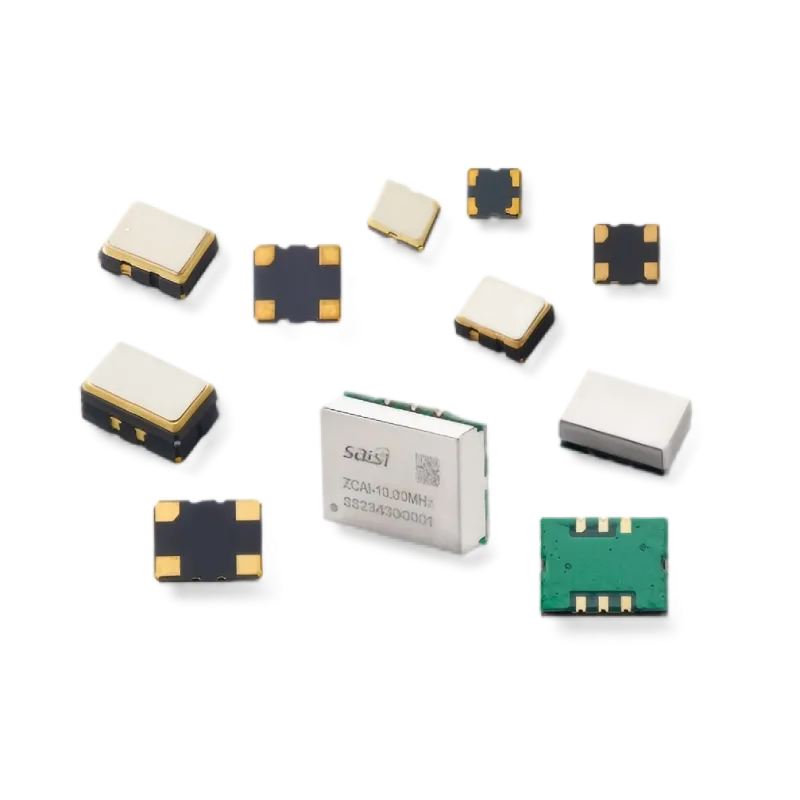

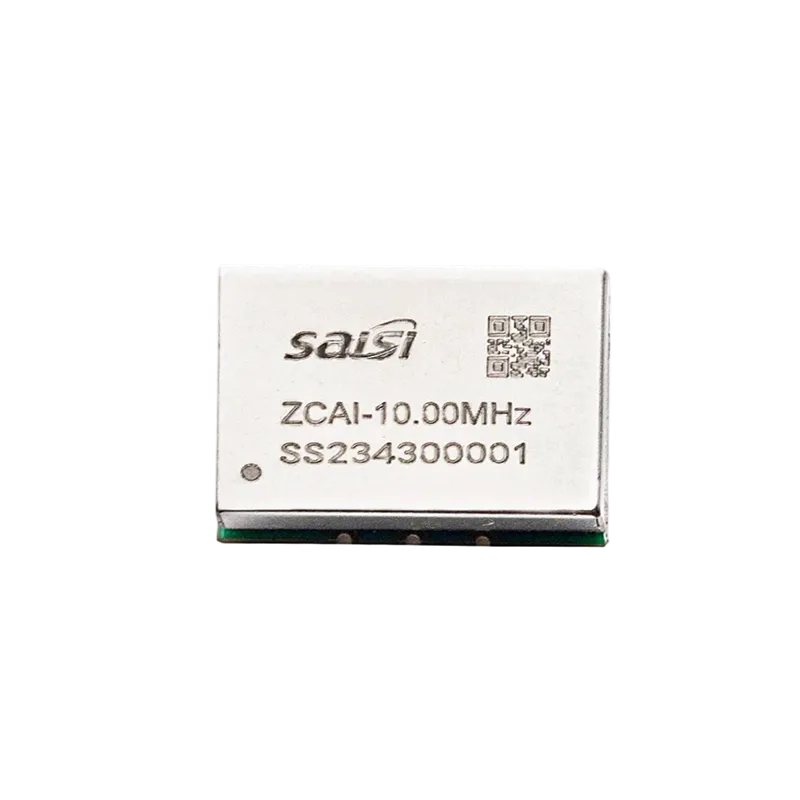

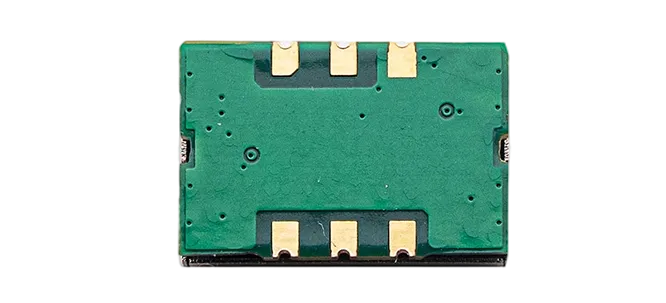

TCXO
Product Overview
A temperature-compensated crystal oscillator (TCXO) is a quartz crystal oscillator that uses a temperature compensation circuit to compensate for frequency drift caused by ambient temperature fluctuations, achieving high-precision frequency output.
Features:
High stability, ultra-wide operating temperature, low phase noise, ultra-small package, ultra-low power consumption, a comprehensive product range, and support for custom designs.
Main Applications:
Communications Equipment: Transmission networks, access networks, datacom products, BBU/RRU/AAU, base stations, etc.
Private Network Equipment: Rail transit, trunked communications, navigation systems, etc.
Industrial Control: Robotics, CNC machine tools, signal acquisition systems, etc.
Instruments: Precision instruments, test equipment, industrial metering (water, electricity, gas, etc.)
Consumer Electronics: Children's watches, senior mobile phones, Bluetooth modules, etc.

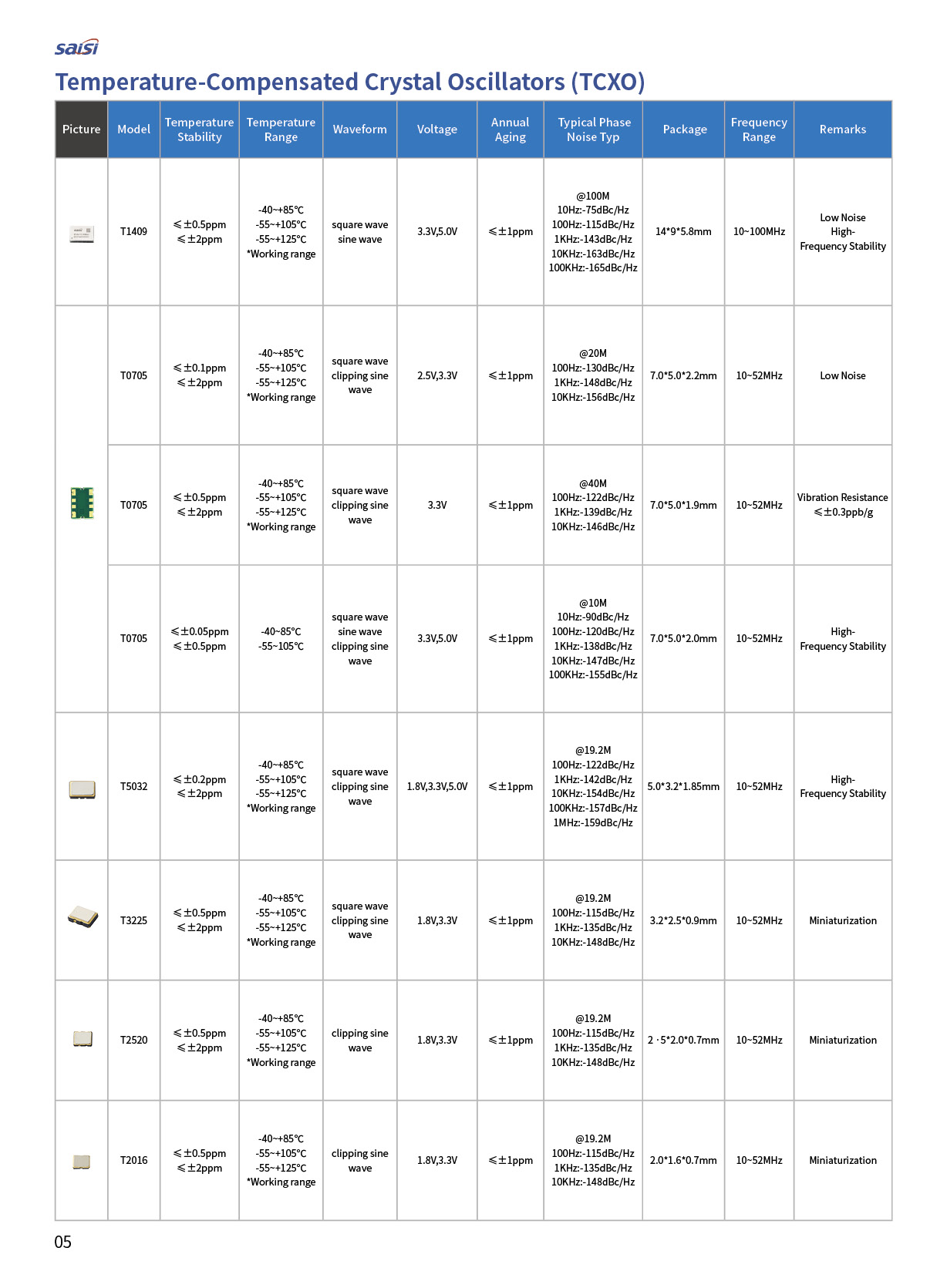

Technical Indicators
| Model | Temperature Stability | Operating Temperature Range | Waveform | Operating Voltage | Aging in Years | Phase Noise Typ | Package | Frequency Range | Remarks | ||||
| T1409 | ≤±0.5ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating Range | Square Wave Sine Wave | 3.3V, 5.0V | ≤±1ppm | @100M 10Hz: -75dBc/Hz 100Hz: -115dBc/Hz 1KHz: -143dBc/Hz 10KHz: -163dBc/Hz 100KHz: -165dBc/Hz | 14*9*5.8mm | 10~100MHz | Low noise High frequency | ||||
| T0705 | ≤±0.1ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating range | Square wave Clipped sine wave | 2.5V, 3.3V | ≤±1ppm | @20M 100Hz: -130dBc/Hz 1KHz: -148dBc/Hz 10KHz: -156dBc/Hz | 7.0*5.0*2.2mm | 10~52MHz | Low noise | ||||
| T0705 | ≤±0.5ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating range | Square Wave Clipped Sine Wave | 3.3V | ≤±1ppm | @40M 100Hz: -122dBc/Hz 1KHz: -139dBc/Hz 10KHz: -146dBc/Hz | 7.0*5.0*1.9mm | 10~52MHz | Vibration Resistance ≤±0.3ppb/g | ||||
| T0705 | ≤±0.05ppm ≤±0.5ppm | -40~85℃ -55~105℃ | Square wave Sine wave Clipped sine wave | 3.3V,5.0V | ≤±1ppm | @10M 10Hz: -90dBc/Hz 100Hz: -120dBc/Hz 1KHz: -138Bc/Hz 10KHz: -147dBc/Hz 100KHz: -155dBc/Hz | 7.0*5.0*2.0mm | 10~52MHz | High stability | ||||
| T5032 | ≤±0.2ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating range | Square wave Clipped sine wave | 1.8V, 3.3V, 5.0V | ≤±1ppm | @19.2M 100Hz: -122dBc/Hz 1KHz: -142dBc/Hz 10KHz: -154dBc/Hz 100KHz: -157dBc/Hz 1MHz: -159dBc/Hz | 5.0*3.2*1.85mm | 10~52MHz | High stability | ||||
| T3225 | ≤±0.5ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating Range | Square Wave Clipped Sine Wave | 1.8V, 3.3V | ≤±1ppm | @19.2M 100Hz: -115dBc/Hz 1KHz: -135dBc/Hz 10KHz: -148dBc/Hz | 3.2*2.5*0.9mm | 10~52MHz | Miniaturized | ||||
| T2520 | ≤±0.5ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating Range | Clipped Sine Wave | 1.8V, 3.3V | ≤±1ppm | @19.2M 100Hz: -115dBc/Hz 1KHz: -135dBc/Hz 10KHz: -148dBc/Hz | 2 5*2.0*0 ·7mm | 10~52MHz | Miniaturized | ||||
| T2016 | ≤±0.5ppm ≤±2ppm | -40~+85℃ -55~+105℃ -55~+125℃ *Operating Range | Clipped Sine Wave | 1.8V,3.3V | ≤±1ppm | @19.2M 100Hz: -115dBc/Hz 1KHz: -135dBc/Hz 10KHz: -148dBc/Hz | 2.0*1.6*0.7mm | 10~52MHz | miniaturization | ||||
