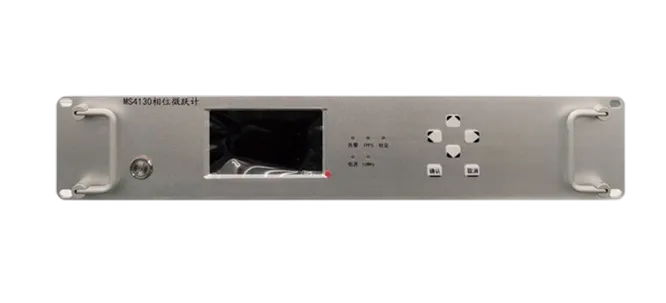

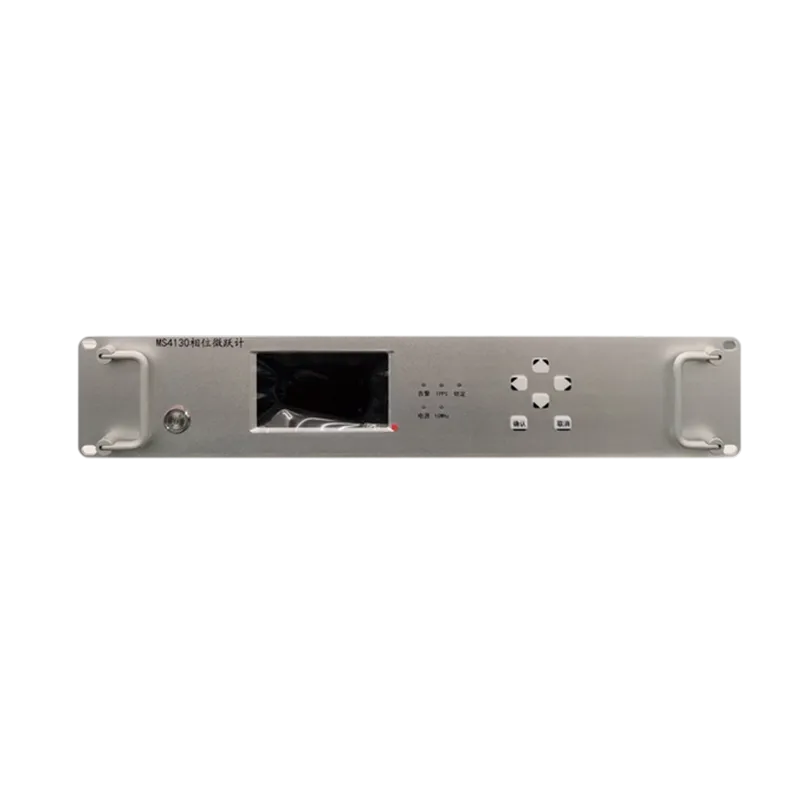

MS4130

Phase Micro-Step Meter

MS4130

Product Overview

The MS4130 Phase Micro-Step Meter is a high-precision phase adjustment device. It consists of a main unit and monitoring and data processing software. Its basic function is to achieve high-precision phase adjustment and frequency steering of frequency signals.

Features:

19-inch standard rack-mount design

Accepts up to four 10MHz signal inputs, with automatic internal or external priority settings

Receives an external 1PPS signal and outputs a 10MHz 1PPS signal with the same phase, aligning it with an external timebase

Performs high-precision phase and frequency adjustment on six 10MHz output signals

Provides network and serial port monitoring capabilities

Product performance indicators reach leading domestic standards and have been certified by authoritative domestic metrology institutions

Main Applications:

Technical Indicators

ProjectTechnical Specifications
Frequency Micro-Jump Resolution≤5E-19
Phase Micro-Jump Resolution≤1ps
Output Frequency Stability1s≤3E-13
Phase Noise10Hz≤-135dBc/Hz
100Hz≤-145dBc/Hz
1kHz≤-155dBc/Hz
10kHz≤-158dBc/Hz
Input Interfaces10MHz4 channels,BNC
1PPS1-channel, BNC
Output interface10MHz6-channel,BNC
1PPS2-way, BNC
Management PortNetwork PortRJ45 1-way
Serial PortRS232 1-way
Environmental AdaptabilityOperating Temperature0°C to +40°C
Storage Temperature-40°C to +75°C
Physical CharacteristicsDimensions (H × W × D)88mm × 430mm × 450mm
Electrical CharacteristicsPower SupplyAC220V±22V, 50Hz±1Hz
Power Consumption100W
