Main Applications:
For production inspection, acceptance testing of time and frequency equipment, and maintenance in scientific research institutions, laboratories, and power plants.
Product Overview

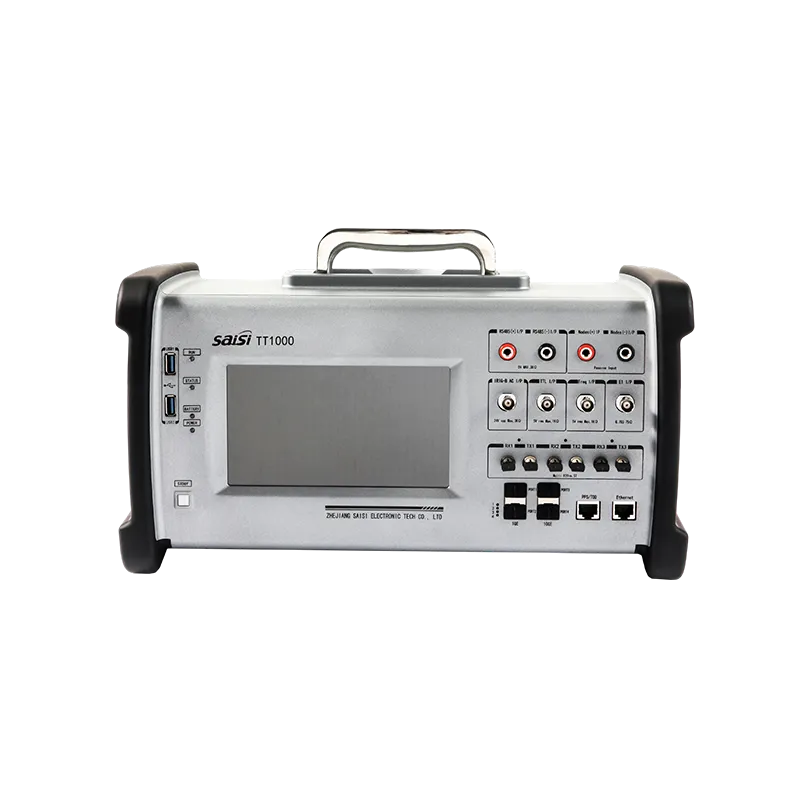

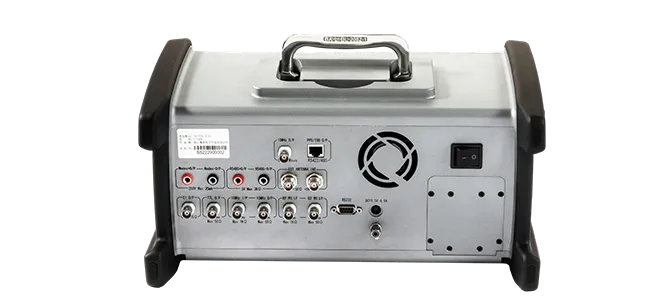

The TT1000 is a time/frequency tester with nanosecond-level accuracy, enabling high-precision measurement, analysis, and evaluation of various time/clock interfaces.
Features:
Supports the customized RS422 protocol for measuring rail transit synchronized clocks
Supports measurement of 2Mbit/2MHz, PPS+TOD, and PTP signals for telecom operator synchronized clocks
Supports capacity testing of NTP/PTP network time servers
Supports measurement of power synchronized clock protocols, including 61850 and 104
Comprehensive analysis software automatically generates test reports
Main Applications:
For production inspection, acceptance testing of time and frequency equipment, and maintenance in scientific research institutions, laboratories, and power plants.
Technical Indicators
| Project | Technical Specifications | |
| Frequency Accuracy | ≤5E-13 (Standard State, 24-hour Average) | |
| Frequency Stability | ≤1E-12 | |
| Timing Accuracy | ≤50ns | |
| Resolution | 1ns | |
| Oscillator | High-stability Oven-Controlled Crystal Oscillator/Rubidium Atomic Clock | |
Measurable Signals | PPS, PPH, PPM | |
| IRIG-BDC/AC | ||
| DCF77 | ||
| RS485/422 | ||
| NTP/PTP/SyncE | ||
| TOD | ||
| E1(2Mbit/2MHz) | ||
| Freq | ||
| IPPS+TOD | ||
| Other Configurations | LCD Display | 7-inch Touchscreen |
| USB | 2 | |
| Battery Life | ≥5 hours | |
| SD card storage | Supported | |
| Power supply | 100~240V(AC),47~60Hz | |
| Environmental adaptability | Operating temperature | -10℃~+60℃ |
| Humidity | 0~95%, non-condensing | |
| Dimensions (Height × Width × Depth) | 200mm × 400mm × 270mm | |
| Weight | ≤7kg | |
