Main Applications:
Scientific research and measurement, communications, power generation, transportation, industrial automation, and other industries.
Product Overview

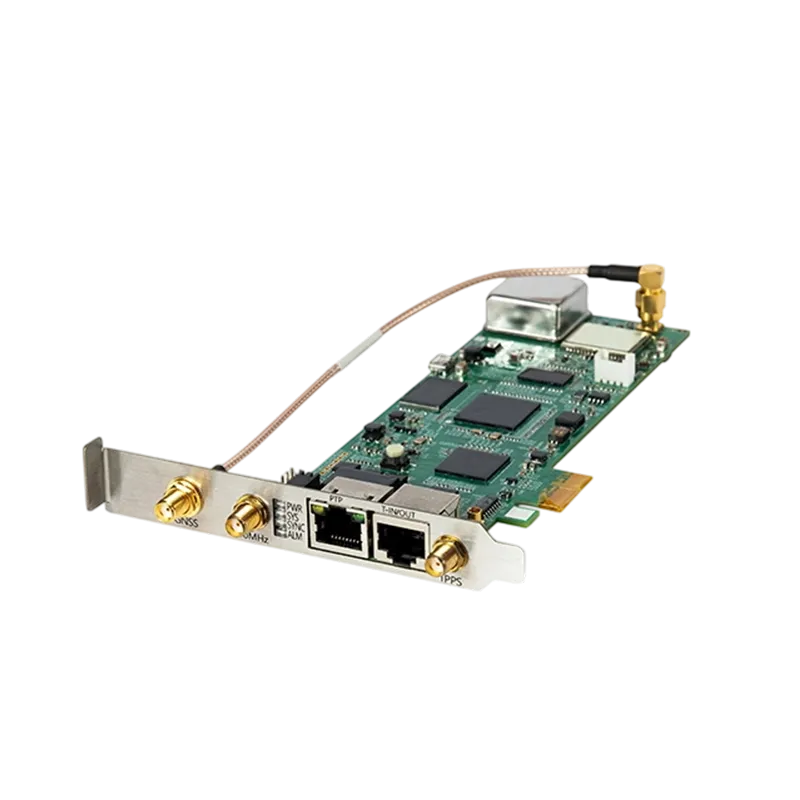

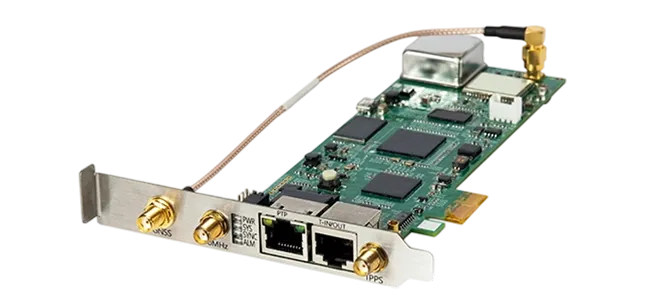

The MOC330 PCI-e timing card supports multiple reference inputs and outputs, allowing for customized combinations to provide high-precision time information for computer systems. It also supports external time loss, supporting GPS/Beidou, PTP, and B-code (DC) as reference sources. It outputs 10M, B-code (DC), 1PPS, and Time of Departure (TOD) signals for external timing.
Features:
When external references are lost, it relies on the built-in high-precision clock for timekeeping.
Outputs pulse-per-second (PPS) time-scale synchronization pulse signals, a reference frequency (10MHz) signal, and time of day (TOD) information.
Provides host software for both backend and desktop operation.
Built-in high-precision GPS/BD dual-mode timing receiver.
Main Applications:
Scientific research and measurement, communications, power generation, transportation, industrial automation, and other industries.
Technical Indicators
| Project | Technical Specifications |
| Satellite Timing Accuracy | ≤50ns |
| PTP Timing Accuracy | ≤50ns |
| B-Code Timing Accuracy | ≤100ns |
| PCI-e Bus Timing Accuracy | ≤10us |
| Timekeeping Performance | ≤10us (24 hours) |
| Timing and Interrupts | 100us~10000s (step: 1us) |
| Oscillator | High-stability Oven-Controlled Crystal Oscillator |
| Power Supply and Power Consumption | PCI-E slot power supply: +12V±0.5V; Power Consumption: Peak 10W, Stable 6W |
| Operating Temperature | -20°C~+70°C |
| Board Dimensions | 180mm × 70mm × 18mm (L × W × H) |
| Weight | <200g |
Related News
Analysis of the Working Principle of SLIC Voice Chip
In today's interconnected world, voice technology has permeated critical domains including network communications, digital devices (such as smartphones and computers), smart home appliances, and in-vehicle navigation systems. As the core component of voice technology, Voice Chips have gained widespread popularity for their compact size and superior

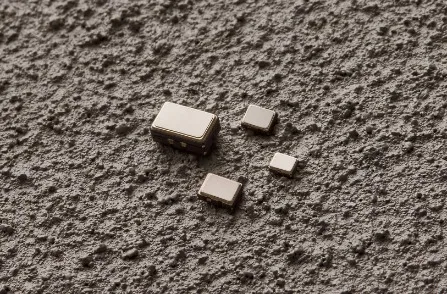

Learn More +What is a TCXO? What are its functions?
